Lapp 52106880 SKINDICHT SHVE-M 16X1,5/9/6/3,6 cable gland

In stock
SKU: 949827
€14.52
Into a basketIn the basketGo

Overview

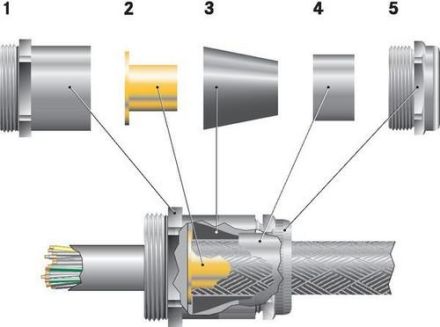

Grounding cable screw connection, Application areas wherever electrical interference fields can occur., Medical technology, frequency converters, airports, measurement, control and regulation technology, Optimal, low-resistance 360° shield contact, High protection class, High strain relief, 1 intermediate nozzle, 2 grounding sleeve, 3 sealing cone, 4 brass cone, 5 pressure screw,

Property Value
Nominal thread size metric: 16
Operating temperature: -20 to 80 °C
Halogen-free: no
Thread type: metric
Color: other
Material: metal
Impact-resistant: yes
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: sealing ring
Bending protection: no
Fiberglass reinforced: no
With lock nut: no
Flat cable gland: no
Explosion-tested version: no
For Ex zone dust: without
Snaps into opening: no
For armored cables: no
EMC version: yes
Shielded: yes

Characteristics

Impact resistantYes
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedYes
HABSKINDICHT SHVE-M 16X1,5/9/6/3,6
Minimal order25 pcs
ManufacturerLapp
HAN52106880
GTIN4044773168921
VersionStraight
EMC versionYes
Operating temperature-20 to 80 °C
ColorOther
Thread typeMetric
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
MaterialMetal
Material qualityBrass
Lapp 52106880 SKINDICHT SHVE-M 16X1,5/9/6/3,6 cable gland
Lapp 52106880 SKINDICHT SHVE-M 16X1,5/9/6/3,6 cable gland
