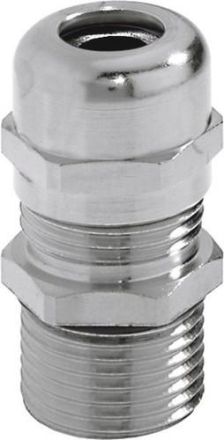

Lapp 53112105 SKINTOP MSR-M-XL 12X1,5 cable gland

In stock

SKU: 949323

Price on request

€3.74

€0

Overview

With reducing sealing insert to seal cables with a smaller outer diameter., Metric connection thread in accordance with DIN EN 60423, basis for technical specifications DIN IEC 62444, UL File No. E79903,

Property	Value
Wrench size:	16 mm
Thread pitch:	1.5 mm
Metric thread size:	12
Suitable for cable diameters:	1 to 5 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	no
Thread length:	12 mm
Thread type:	metric
Color:	other
Material:	metal
Impact-resistant:	yes
Material quality:	brass
Design:	straight
With strain relief:	yes
Surface protection:	nickel-plated
Type of seal:	Sealing ring
Bending protection:	no
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	no
For Ex zone gas:	without
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
