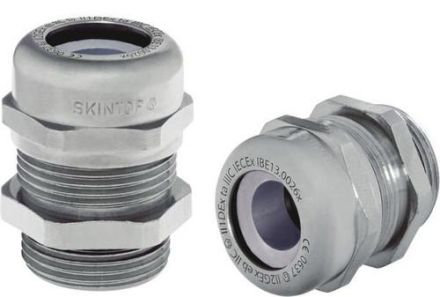

Lapp 53112775 SKINTOP MSR-M 63x1,5 ATEX cable gland

In stock

SKU: 799450

Price on request

€109.61

€0

Overview

with reducing sealing insert to seal cables with a smaller outer diameter, metric connection thread in accordance with DIN EN 60423, basis for technical specifications DIN IEC 62444,

Property	Value
Wrench size:	67 mm
Thread pitch:	1.5 mm
Nominal thread size metric/PG:	63
Suitable for cable diameters:	32 to 39 mm
Protection class (IP):	IP68
Operating temperature:	-40 to 100 °C
Halogen-free:	no
Thread length:	15 mm
Thread type:	metric
Design:	straight
Color:	other
Material:	metal
With strain relief:	yes
Surface:	nickel-plated
Type of seal:	sealing ring
Impact-resistant:	yes
Bending protection:	no
Material quality:	brass
Fiberglass reinforced:	no
With lock nut:	no
Multiple sealing inserts:	no
Flat cable gland:	no
Dividable gland:	no
Explosion-tested version:	yes
For Ex-zone gas:	without
For Ex-zone dust:	20, 21, 22
Snaps into opening:	no
For armored cables:	no
EMC version:	no
Shielded:	no
