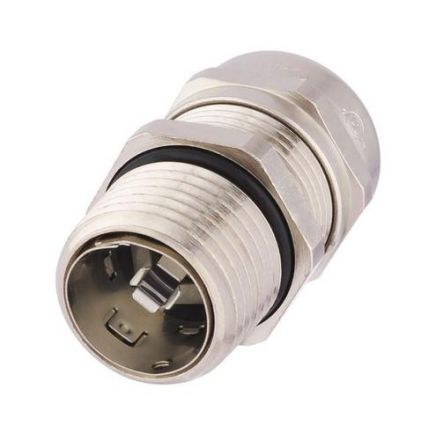

Lapp 53112910 SKINTOP MS-SC NPT 3/8' cable gland

In stock
SKU: 949279
€21.99
Into a basketIn the basketGo

Overview

For EMC-compliant grounding of the copper braided shield, or for cables with a corrugated copper sheath, automation technology, telecommunications, measurement, control and regulation technology, mechanical and plant engineering, suitable for cables and lines with and without an inner sheath, also suitable for extending the cable shield to another connection, low-resistance shield contact, optimal EMC protection, highly conductive, flexible EMC contact spring, thus easy installation of different shield diameters, NPT connection thread according to ASME B1.20.1 - 2013, UL File No. E79903,

Property Value
Wrench size: 20 mm
Suitable for cable diameters: 4.5 to 10 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: no
Thread length: 15 mm
Thread type: NPT
Color: other
Material: metal
Impact resistant: no
Material quality: brass
Design: straight
With strain relief: yes
Surface protection: nickel-plated
Type of seal: sealing ring
Bending protection: no
Nominal thread size in inches NPT/gas pipe thread: 3/8 inch
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-Zone Gas: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: yes

Characteristics

Impact resistantNo
Explosion-tested versionNo
Fiberglass reinforcedNo
ShieldedYes
Suitable for cable diameter4.5 to 10mm
Wrench size20 mm
HABSKINTOP MS-SC NPT 3/8'
Minimal order100 pcs
ManufacturerLapp
HAN53112910
GTIN4044773169201
VersionStraight
EMC versionNo
Operating temperature-40 to 100 °C
ColorOther
Thread typeNPT
Thread length15 mm
Halogen freeNo
With strain reliefYes
Surface protectionNickel-plated
IP protection)IP68
MaterialMetal
Material qualityBrass
