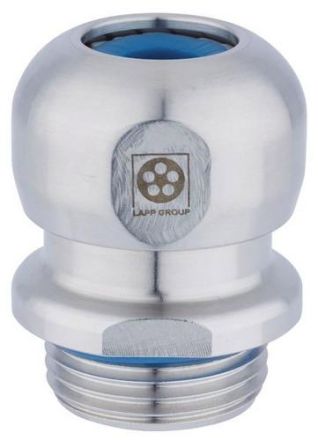

Lapp 53806740 SKINTOP INOX M16x1,5 cable gland

In stock
SKU: 798649
€30.98
Into a basketIn the basketGo

Overview

Food industry (product-free zone, splash zone), onshore and offshore applications, bottling plants and breweries, corrosion-resistant, smooth surfaces - without edges, compact design, seawater-resistant, large, variable clamping ranges, metric connection thread in accordance with DIN EN 60423, basis for technical information DIN IEC 62444, DIN EN ISO 14159 Safety of machinery - hygiene requirements for the design of machines, DIN EN 1672-2 Food processing machinery - general design principles, ECOLAB® industry standard in the field of professional cleaning and disinfection in food production, NSF/ANSI 169 design criteria for hygienic machines, apparatus and components,

Property Value
Wrench size: 20 mm
Nominal thread size metric/PG: 16
Suitable for cable diameters: 6 to 10 mm
Protection class (IP): IP68
Operating temperature: -40 to 100 °C
Halogen-free: no
Thread length: 7 mm
Thread type: metric
Design: straight
Color: other
Material: Metal
With strain relief: yes
Surface: untreated
Type of seal: Sealing ring
Impact-resistant: yes
Bending protection: no
Material quality: Steel
Fiberglass reinforced: no
With lock nut: no
Multiple sealing insert: no
Flat cable screw connection: no
Dividable screw connection: no
Explosion-tested version: no
For Ex-Zone Gas: without
Snaps into opening: no
For armored cables: no
EMC version: no
Shielded: no

Characteristics

Impact resistantYes
Explosion-tested versionNo
Nominal thread size metric/PG16
Fiberglass reinforcedNo
ShieldedNo
Suitable for cable diameter6 to 10 mm
Wrench size20 mm
HABSKINTOP INOX M16x1,5
Minimal orderPcs
ManufacturerLapp
HAN53806740
GTIN4044776567448
VersionStraight
EMC versionNo
Operating temperature-40 to 100 °C
ColorOther
Thread typeMetric
Thread length7 mm
Halogen freeNo
With strain reliefYes
SurfaceUntreated
IP protection)IP68
MaterialMetal
Material qualitySteel
