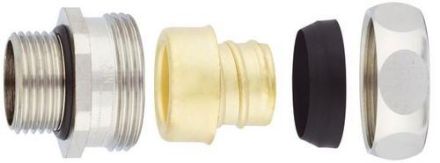

Lapp 55502674 SILVYN US PG 13.5 AS-P hose fitting

In stock

SKU: 950239

Price on request

€22.26

€0

Overview

In combination with cable protection conduit:, SILVYN® AS/AS-P/EDU-AS/EMC AS-CU, mechanical engineering, plant engineering, high extraction force, space-saving, vibration protection, universally applicable, PG connection thread, 6-edge intermediate piece, screw-in sleeve, sealing element, union nut, compact design,

Property	Value
Thread connection size:	PG13.5
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Rotatable thread:	no
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface protection:	nickel-plated
Operating temperature:	-40 to 125 °C
Connection type of screw connection to the housing:	thread
Number of entries:	1
