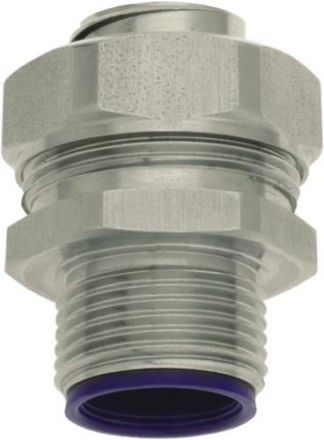

Lapp 55503225 SILVYN LCG-M 25X1,5 hose fitting

In stock

SKU: 950433

Price on request

€20.17

€0

Overview

In combination with cable protection conduit:, SILVYN® LCC-2 / LCCH-2, Mechanically demanding environments, Wherever liquids occur, High pull-out force, Vibration protection, Increased tightness, Metric connection thread, 6-edge intermediate socket, screw-in sleeve, union nut,

Property	Value
Thread connection size:	M25 x 1.5
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Rotatable thread:	no
Design:	straight
Construction:	external thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface protection:	nickel-plated
Operating temperature:	-50 to 135 °C
Thread type:	metric
Connection type of the screw connection to the housing:	thread
Number of entries:	1
