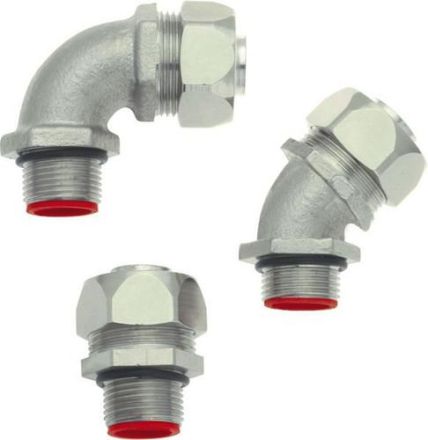

Lapp 55503534 SILVYN HIPROJACKET AMG 90° M40X1,5 MS hose fitting

In stock

SKU: 950312

Price on request

€107.17

€0

Overview

In combination with cable protection conduit:, SILVYN® HIPROJACKET, High pull-out force, For high mechanical loads, 45° and 90° angle enables optimal assembly, Connection thread metric/PG, 6-sided intermediate socket straight / half angle / angle, screw-in sleeve, union nut,

Property	Value
Thread connection size:	M40 x 1.5
Perm. in combination with protective hose according to DIN EN 61386-23:	yes
Rotatable thread:	no
Design:	90° bend
Construction:	External thread
One-piece:	no
Approved in combination with protective hose UL:	no
Approved in combination with protective hose CSA:	no
Approved in combination with protective hose FI:	no
Material of the housing:	brass
Surface protection:	nickel-plated
Operating temperature:	-45 to 105 °C
Thread type:	metric
Connection type of the screw connection to the housing:	thread
Number of entries:	1
