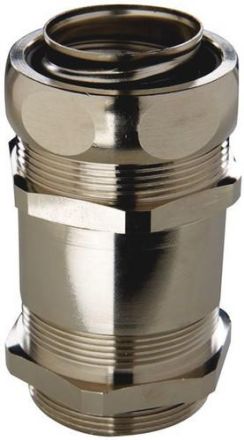

Lapp 55506045 SILVYN MSK-M 50X1,5 AS ATEX BRUSH hose fitting

In stock
SKU: 949460
€200.04
Into a basketIn the basketGo

Overview

Plant engineering, chemical and petrochemical industries, devices, machines and systems with ignition protection type increased safety 'e', wherever cables and lines in the EX area require additional mechanical protection, highest cable sealing, fast, convenient shield contact, optimal cable and hose strain relief, simplified assembly, large clamping range, SILVYN® hose connection using inner sleeve and union nut, metric connection thread in accordance with DIN EN 60423, combination of SILVYN® and SKINTOP®,

Property Value
Thread connection size: M50 x 1.5
Perm. in combination with protective hose according to DIN EN 61386-23: yes
Rotatable thread: no
Design: straight
Construction: external thread
One-piece: no
Approved in combination with protective hose UL: no
Approved in combination with protective hose CSA: no
Approved in combination with protective hose FI: no
Material of the housing: brass
Surface protection: nickel-plated
Operating temperature: -30 to 90 °C
Thread type: metric
Connection type of the screw connection to the housing: thread
Number of entries: 1

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Approved in combination with protective hose CSANo
HABSILVYN MSK-M 50X1,5 AS ATEX BRUSH
ManufacturerLapp
HAN55506045
GTIN4044776568513
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-30 to 90 °C
Thread connection sizeM50x1.5
Thread typeMetric
Surface protectionNickel-plated
Housing materialBrass
Lapp 55506045 SILVYN MSK-M 50X1,5 AS ATEX BRUSH hose fitting
Lapp 55506045 SILVYN MSK-M 50X1,5 AS ATEX BRUSH hose fitting
€200.04
Into a basketIn the basketGo
