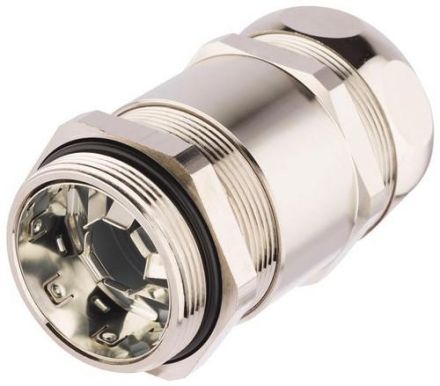

Lapp 55506097 SILVYN MSK-M 63X1,5 EDU hose fitting

In stock
SKU: 949638
€171.97
Into a basketIn the basketGo

Overview

In combination with cable protection conduit:, SILVYN® AS/AS-P/EDU-AS/EMC AS-CU, Indoor applications / outdoors, Anywhere where cables and lines require additional strain relief and sealing, Optimum cable and hose strain relief, Maximum cable sealing, Quick and easy installation, Large clamping range, Twist-proof, Optionally:, SKINTOP® MS-M cable gland or, SKINTOP® MS-SC-M EMC connection, SKINTOP® DIX multiple sealing insert, SILVYN® hose connection using an inner sleeve and union nut, Combination of SILVYN® and SKINTOP®,

Property Value
Thread connection size: other
Perm. in combination with protective hose according to DIN EN 61386-23: yes
Rotatable thread: no
Design: straight
Construction: external thread
One-piece: no
Approved in combination with protective hose UL: no
Approved in combination with protective hose CSA: no
Approved in combination with protective hose FI: no
Material of the housing: brass
Surface protection: nickel-plated
Operating temperature: -30 to 100 °C
Thread type: metric
Connection type of the screw connection to the housing: thread
Number of entries: 1

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Approved in combination with protective hose CSANo
HABSILVYN MSK-M 63X1,5 EDU
ManufacturerLapp
HAN55506097
GTIN4044773456301
VersionStraight
DesignExternal thread
Rotating threadNo
Operating temperature-30 to 100 °C
Thread connection sizeOther
Thread typeMetric
Surface protectionNickel-plated
Housing materialBrass
Lapp 55506097 SILVYN MSK-M 63X1,5 EDU hose fitting
Lapp 55506097 SILVYN MSK-M 63X1,5 EDU hose fitting
€171.97
Into a basketIn the basketGo
