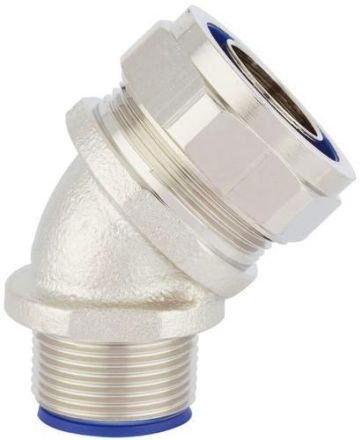

Lapp 55510300 SILVYN LTP 45° M20X1,5/1 MS hose fitting

In stock
SKU: 950619
€44.54
Into a basketIn the basketGo

Overview

In combination with cable protection conduit:, SILVYN® LTP, Mechanically demanding environments, Wherever liquids occur, High pull-out force, Vibration protection, High sealing, Metric connection thread, 45° angle hexagon intermediate socket, screw-in sleeve, union nut,

Property Value
Thread connection size: M20 x 1.5
Perm. in combination with protective hose according to DIN EN 61386-23: yes
Rotatable thread: no
Design: 45° bend
Construction: External thread
One-piece: no
Approved in combination with protective hose UL: no
Approved in combination with protective hose CSA: no
Approved in combination with protective hose FI: no
Material of the housing: brass
Surface protection: nickel-plated
Operating temperature: -50 to 135 °C
Thread type: metric
Connection type of the screw connection to the housing: thread
Number of entries: 1

Characteristics

One-pieceNo
Connection type of screw connection to the housingThread
Approved in combination with protective hose CSANo
HABSILVYN LTP 45° M20X1,5/1 MS
Minimal order10 pcs
ManufacturerLapp
HAN55510300
GTIN4044777184378
Version45° bend
DesignExternal thread
Rotating threadNo
Operating temperature-50 to 135 °C
Thread connection sizeM20x1.5
Thread typeMetric
Surface protectionNickel-plated
Housing materialBrass
Lapp 55510300 SILVYN LTP 45° M20X1,5/1 MS hose fitting
Lapp 55510300 SILVYN LTP 45° M20X1,5/1 MS hose fitting
€44.54
Into a basketIn the basketGo
