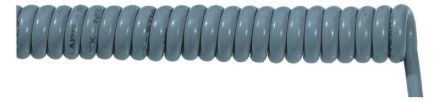

Lapp 70002724 ÖLFLEX SPIRAL 400 P 5G2.5/2000 PUR spiral cable with protective conductor

In stock
SKU: 952024
€217.74
Into a basketIn the basketGo

Overview

Nominal voltage: 300/500 V Application: Control cables and machine supply cables, mechanical engineering, apparatus construction Structure: High restoring forces and extension lengths of up to 3 times the closed spiral length, fine-wire strand made of bare copper wires, core insulation made of special PVC P8/1, outer sheath made of special polyurethane, sheath color: gray Properties: Core based on 0812/0285, sheath based on 0250/0285, resistant to microbes, hydrolysis and almost all mineral oils, high chemical resistance when exposed to benzene, petrol and other substances.

Property Value
Nominal conductor cross-section: 2.5 mm²
Outer diameter approx.: 10 mm
Sheath colour: grey
Number of cores: 5
Spiral length (closed): 2000 mm
Spiral length (extended): 5000 mm
Conductor class: Class 5 = fine-wire
Material of core insulation: Polyvinyl chloride (PVC)
Core marking: Numbers
Sheath material: Polyurethane (PUR)
Flame retardant: no
Permissible external cable temperature during assembly/handling: 5 to 50 °C
Nominal voltage U0: 300 V
Nominal voltage U: 500 V

Characteristics

Sheath materialPolyurethane (PUR)
Nominal conductor cross-section2.5 mm²
Outer diameter approx.10 mm
HABÖLFLEX SPIRAL 400 P 5G2,5/2000
ManufacturerLapp
HAN70002724
GTIN4044773298253
Wire number5
Leader ClassKl.5 = fine-stranded
Coat colorGray
