Legrand 075606 cable duct Mosaic-K 50x180 U+O , (pure white)

In stock
SKU: 240779
€45.03
Into a basketIn the basketGo

Overview

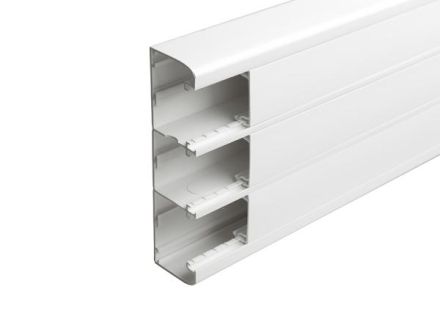

DLP parapet duct 50 x 180 mm, for direct mounting of MosaicT switch material, scope of delivery: - lower part with 3 channels with integrated divider for separating data and supply lines - 3x covers (width 45 mm), length: 2000 mm. The divider is pre-perforated so that cables can be easily switched between the chambers

Property Value
Width: 180 mm
Length: 2000 mm
Depth: 50 mm
RAL number: 9003
Material: Plastic
Halogen-free: no
Rectangular design: yes
Number of tops: 3
Top width 1: 45 mm
Top width 2: 45 mm
Top width 3: 45 mm
Symmetrical: yes
Material quality: Polyvinyl chloride (PVC)
Surface: untreated
Rear wall design (Inside): perforated
With protective film: yes
Number of pluggable partitions: 3
With channel connector: no
Mounting holes in the base: yes
Mounting type of upper parts: internal
With cable retaining clip: no
Usable cross-section: 6834 mm²
Tops included: yes

Characteristics

Insert Module TypeLight switch covers
ColorWhite
Minimal order2 meters
ManufacturerLEGRAND
HAN075606
GTIN3245060756062
Width180 mm
Halogen freeNo
Length2000 mm
SurfaceUntreated
RAL number9003
Depth50 mm
MaterialPlastic
Material qualityPolyvinyl chloride (PVC)
