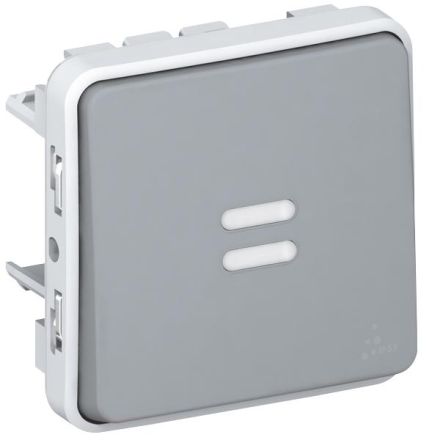

Legrand 069542 rocker switch illuminated 1-pole damper Modular Plex, (grey)

Legrand 069542 rocker switch illuminated 1-pole damper Modular Plex, (grey)

In stock

SKU: 242319

Price on request

€10.47

€0

Into a basketIn the basketGo

Overview

Rocker switch illuminated 1-pole damp room Modular Plexo 55 gray

Property	Value
Color:	gray
Design:	Single button
Suitable for protection class (IP):	IP55
Contacts:	1 make contact
Operating mode:	Rocker
Mounting type:	Surface-mounted
Number of Rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	no
Composition:	Base element with central cover plate
Feedback contact:	no
With lighting:	no
Mounting type:	other
Material:	plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7046
Nominal voltage:	250 V
Number of modules (with modular construction):	2
Print:	without
Rated current:	10 A
Device width:	64 mm
Device height:	64 mm
Device depth:	40 mm
Number of poles:	1
Transparent:	no
Antibacterial treatment:	no
With signal lamp:	yes
Min. depth of device socket:	40 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

With lightingNo

Manufacturer

HAN069542

GTIN3245060695422

Antibacterial treatmentNo

Number of modules (for modular construction)2

ImprintWithout

VersionSingle button

Surface finishFrosted

Operating modeSeesaw

Mounting typeOther

Rated current10A

Color

Suitable for protection class (IP)IP55

Device width64 mm

Device height64 mm

Device depth40 mm

Halogen freeYes

Min. depth of the device box40 mm

With signal lampYes

Mounting typeSurface-mounted

Nominal voltage250V

SurfaceUntreated

Number of poles1

RAL number (similar)7046

Text field/label areaNo

TransparentNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with central cover plate
