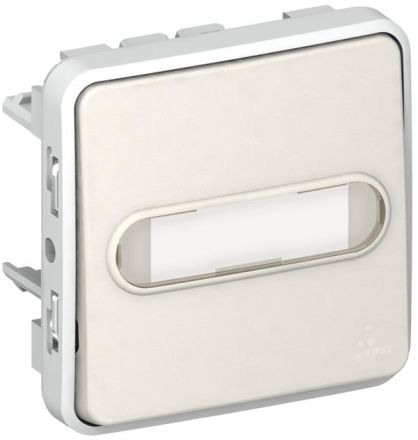

Legrand 069633 button FRAP description for MODUL. WS , (white)

Legrand 069633 button FRAP description for MODUL. WS , (white)

In stock

SKU: 242324

Price on request

€14.98

€0

Into a basketIn the basketGo

Overview

With labelling field. Equipped with 12 V glow lamp Order No. 694 99, also suitable for glow lamp 230 V Order No. 694 97. Color: white

Property	Value
Color:	white
Design:	Single button
Suitable for protection class (IP):	IP55
Operating mode:	Rocker
Mounting type:	other
Number of rocker switches:	1
Halogen-free:	yes
Text field/labeling area:	yes
Composition:	Base element with central cover plate
Feedback contact:	no
With lighting:	yes
Mounting type:	other
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
RAL number (similar):	9100
Nominal voltage:	250 V
Number of modules (with modular design):	2
Print:	Letters
Rated current:	10 A
Device width:	64 mm
Device height:	64 mm
Device depth:	40 mm
Number of poles:	1
Transparent:	no
Antibacterial treatment:	no
With signal lamp:	yes
Min. depth of device box:	40 mm

Characteristics

Insert Module TypeLight switch covers

ColorWhite

Feedback contactNo

Number of actuating rockers1

With lightingYes

Manufacturer

HAN069633

GTIN3245060696337

Antibacterial treatmentNo

Number of modules (for modular construction)2

ImprintLetters

VersionSingle button

Surface finishFrosted

Operating modeSeesaw

Mounting typeOther

Rated current10A

Color

Suitable for protection class (IP)IP55

Device width64 mm

Device height64 mm

Device depth40 mm

Halogen freeYes

Min. depth of the device box40 mm

With signal lampYes

Mounting typeOther

Nominal voltage250V

SurfaceUntreated

Number of poles1

RAL number (similar)9100

Text field/label areaYes

TransparentNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with central cover plate

Legrand 069633 button FRAP description for MODUL. WS , (white)

Legrand 069633 button FRAP description for MODUL. WS , (white)

Price on request

€14.98

€0

Into a basketIn the basketGo
