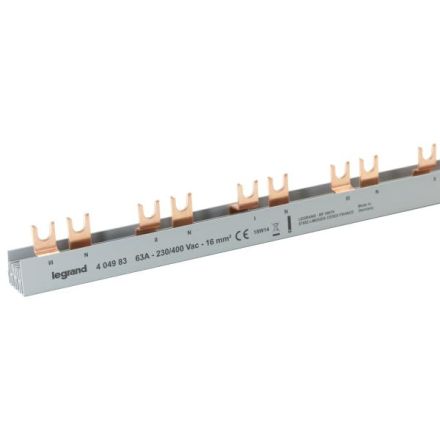

Legrand 404983 Fork comb rail for AFDD with FI/LS 3P+N 16mm 1 meter

Legrand 404983 Fork comb rail for AFDD with FI/LS 3P+N 16mm 1 meter

In stock

SKU: 409920

Price on request

€94.56

€0

Into a basketIn the basketGo

Overview

Legrand fork comb busbar, 4-pole, 1 m, cross-section: 16 mm², 3-phase+N, for 19 fire protection switches DX3 Stop Arc (AFDD with FI/LS switch), number of connected devices max.: 19

Property	Value
Number of poles:	36
Number of phases:	4
Length:	951 mm
Cross-section:	16 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	18
Suitable for devices with N-conductor:	yes
Pitch:	54.05 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	0.63 kA
Design of the electrical Connection:	Fork

Characteristics

Insert Module TypeLight switch covers

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices18

Pitch dimension54.05 mm

Manufacturer

HAN404983

GTIN3414971429307

Number of phases4

Design of the electrical connectionFork

Conditional rated short-circuit current Iq0.63kA

Rated continuous current Iu63 A

IsolatedYes

Length951 mm

Max. rated operating voltage Ue400V

Number of poles36

Cross-section16 mm²
