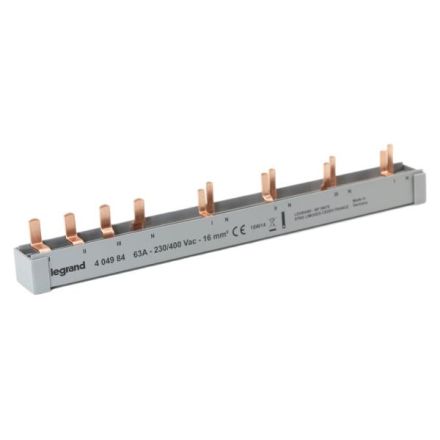

Legrand 404984 pin comb rail for 1FI4POL m. 4AFDD with LS 16mm 12TE

Legrand 404984 pin comb rail for 1FI4POL m. 4AFDD with LS 16mm 12TE

In stock

SKU: 409921

Price on request

€17.62

€0

Into a basketIn the basketGo

Overview

Legrand pin comb busbars - combination, 4-pole, 12 TE, cross-section: 16 mm², 3-phase+N, for 1 4-pole residual current circuit breaker and 4 DX3 Stop Arc fire protection switches (AFDD with LS switch), number of connected devices max.: 5

Property	Value
Number of poles:	12
Number of phases:	4
Length:	224 mm
Cross-section:	16 mm²
Rated continuous current Iu:	63 A
Max. Rated operating voltage Ue:	400 V
Insulated:	yes
Suitable for number of devices:	5
Suitable for devices with N-conductor:	yes
Pitch:	36.25 mm
Suitable for devices with auxiliary switch:	no
Conditional rated short-circuit current Iq:	0.63 kA
Design of the electrical Connector:	Pin

Characteristics

Insert Module TypeLight switch covers

Suitable for devices with auxiliary switchNo

Suitable for devices with N conductorYes

Suitable for number of devices5

Pitch dimension36.25 mm

Manufacturer

HAN404984

GTIN3414971429321

Number of phases4

Design of the electrical connectionPen

Conditional rated short-circuit current Iq0.63kA

Rated continuous current Iu63 A

IsolatedYes

Length224 mm

Max. rated operating voltage Ue400V

Number of poles12

Cross-section16 mm²
