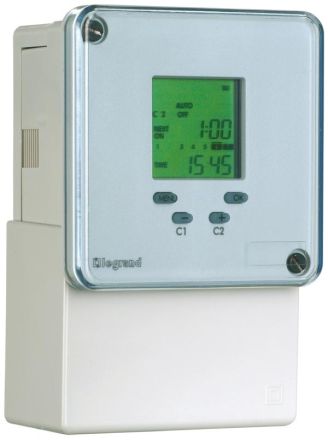

Legrand 049680 Maxi D72/1 Plus 230/50-60

In stock
SKU: 240059
€116.46
Into a basketIn the basketGo

Overview

Legrand MaxiRex D72/1 Plus, digital weekly timer for front panel installation and wall mounting, 1 channel, 28 switching programs, operating voltage 230 V 50/60 Hz, program creation directly on the device. Permanent ON/OFF, automatic summer/winter time changeover, 6-year power reserve, accuracy +/- 1 sec/day, shortest switching time: 1 min., front panel installation dimensions: 72 x 72 mm. Switching output: 1 changeover contact.

Property Value
Number of channels: 1
Protection class (IP): IP20
Supply voltage: 230 V
Power reserve in years: 6
Weekly program: yes
Annual program: no
Mounting type: Front mounting 72x72 mm
Type of supply voltage: AC
Frequency of supply voltage: 50 to 60 Hz
Accuracy per day: 1 s
Text guidance in display: yes
24 h program: yes
60 min program: no
Automatic summer/winter time change: yes
Shortest switching time channel 1: 1 min
Holiday program: no
Pulse program: no
Cycle program: no
Astro program: no
External button input: no
Random program: no
Operating hours counter: no
Mains synchronous: no
Quartz-controlled: yes
Radio-controlled: no
Manual operation: yes
Number of memory locations: 28
Switching preselection: yes
Rated switching current at 250 V AC: 16 A
Potential-free switching contact: yes
Width: 72 mm
Height: 110 mm
Depth: 44 mm
External programming: no
Radio controlled (DCF77): no
GPS: no
With memory card: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
ManufacturerLEGRAND
HAN049680
GTIN4010957496807
Width72 mm
Height110 mm
Mounting typeFront mounting 72x72 mm
IP protection)IP20
Depth44 mm
Supply voltage230V
