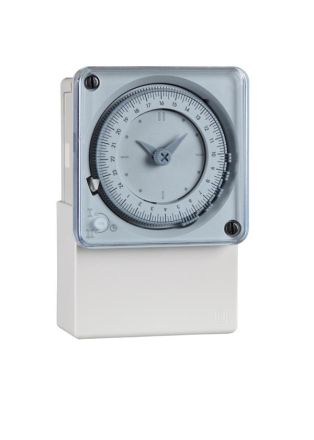

Legrand 049750 Maxirex Ct 230v 50hz

In stock
SKU: 242534
€54.63
Into a basketIn the basketGo

Overview

Legrand MicroRex T, analogue daily timer with synchronous motor (mains-synchronous accuracy) for front panel installation and wall mounting, 1 channel, operating voltage 230 V 50 Hz. With manual switch (ON/OFF/AUTOMATIC). Pointer can be rotated forwards and backwards, making it easy to change over (e.g. summer/winter time), shortest switching time 30 minutes. Switching output: 1 changeover contact.

Property Value
Number of channels: 1
Protection class (IP): IP20
24 h program: yes
Manual operation: yes
Supply voltage: 230 V
Mounting type: Front mounting 72x72 mm
Type of supply voltage: AC
Frequency of supply voltage: 50 Hz
Shortest switching time channel 1: 30 min
Contact design: Changeover contact
Mains synchronous: yes
Weekly program: no
Nominal switching current at 250 V AC: 16 A
Annual program: no
Quartz-controlled: no
Automatic summer/winter time changeover: no
Height: 110 mm
Width: 72 mm
Depth: 44 mm
Program disk division 1: 10 min
Switching preselection: yes
Potential-free switching contact: yes
60 min program: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
ManufacturerLEGRAND
HAN049750
GTIN4010957497507
Width72 mm
Height110 mm
Mounting typeFront mounting 72x72 mm
IP protection)IP20
Depth44 mm
Supply voltage230V
