Legrand 049926 Polarrex Kkt 230v 50hz

In stock
SKU: 242540
€78.72
Into a basketIn the basketGo

Overview

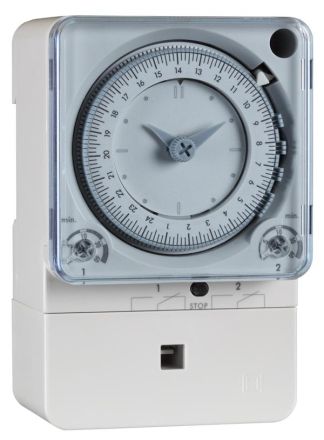

According to IEC 730-1, EN 60730-1,0631 Part 1, IEC 730-2-7, EN 60730-2-7,0631 Part 2-7 The timer has a day disk and one (1 channel) and two (2 channel) continuously adjustable short-time programs that can be repeated several times within 24 hours. The duration of the programs is set using an adjusting knob assigned to the corresponding channel. The respective start is programmed on the day disk by pulling out a segment. The shortest switching sequence (start of a switching time) is 30 minutes. The short program can be repeated 48 times within 24 hours. The program start, duration and number can be easily changed without any tools. Mounting types: Snap on DIN rail EN 500 22 Installation on wall or mounting plate

Property Value
Number of channels: 2
Protection class (IP): IP20
24 h program: yes
Manual operation: yes
Supply voltage: 230 V
Mounting type: DIN rail
Type of supply voltage: AC
Frequency of supply voltage: 50 Hz
Shortest switching time channel 1: 1 min
Contact design: Changeover contact
Mains synchronous: yes
Weekly program: no
Shortest switching time channel 2: 1 min
Nominal switching current at 250 V AC: 16 A
Annual program: no
Quartz controlled: no
Automatic summer/winter time change: no
Height: 113.7 mm
Width: 72 mm
Depth: 53.4 mm
Program disc division 1: 30 min
Program disc division 2: 30 min
Switching preselection: no
Potential-free switching contact: yes
60 min program: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels2
ManufacturerLEGRAND
HAN049926
GTIN4010957499266
Width72 mm
Height113.7 mm
Mounting typeDIN rail
IP protection)IP20
Depth53.4 mm
Supply voltage230V
