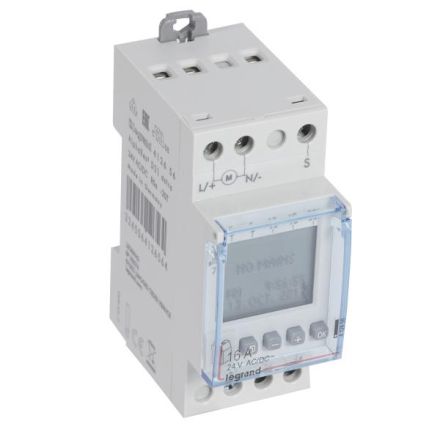

Legrand 412656 Digital timer AlphaRex D21 Astro 1 channel 24V AC

In stock
SKU: 240078
€167.87
Into a basketIn the basketGo

Overview

AlphaRex D21 astro, digital astro timer with control input, series installation, for switching lights and other electrical consumers on and off at dusk. Astro function can be combined with timer function. Offset for sunrise and sunset times adjustable via time offset +/-120 min. or angle offset +/-12°00. Control directly from the distribution board, no separate light catcher required. With text-guided programming concept. Programming accurate to the second. Simple program creation via PC using Legrand AlphaSoft and data key. Switching times visible as a weekly overview in the display. Programming by selecting day blocks or selecting preset blocks Mon-Sun, Mon-Fri or Sat-Sun. 56 programs. Shortest switching time 1 sec., switching step 1 sec. Power reserve 5 years for date and time. EEPROM memory for saving the switching programs. Additional convenience functions: holiday program, random program, cycle function, operating hour counter, PIN code input lock, 1h test, background lighting, automatic summer/winter time changeover, mains synchronous operation adjustable, manual switching, with zero-crossing switching. Switching output: 1 changeover contact 250 V/ 50 Hz, 16 A~ cos phi = 1

Property Value
Width in division units: 2
Number of channels: 1
Protection class (IP): IP20
Supply voltage: 24 V
Power reserve in years: 5
Weekly program: yes
Annual program: yes
Mounting type: DIN rail
Type of supply voltage: AC/DC
Frequency of supply voltage: 50 to 60 Hz
Accuracy per day: 0.1 s
Text guidance in the display: yes
24 h program: yes
60 min program: no
Automatic summer/winter time change: yes
Shortest switching time channel 1: 0.01666 min
Holiday program: yes
Pulse program: no
Cycle program: yes
Astro program: yes
External button input: yes
Random program: yes
Operating hours counter: yes
Mains synchronous: yes
Quartz controlled: yes
Radio controlled: no
Manual operation: yes
Number of memory locations: 56
Switching preselection: yes
Nominal switching current at 250 V AC: 16 A
Potential-free switching contact: yes
Width: 35.6 mm
Height: 83 mm
Depth: 60 mm
External programming: yes
Radio-controlled (DCF77): no
GPS: no
With memory card: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC/DC
Supply voltage24 V
Number of channels1
ManufacturerLEGRAND
HAN412656
GTIN3245064126564
Width35.6 mm
Width in pitch units2
Height83 mm
Mounting typeDIN rail
IP protection)IP20
Depth60 mm
Supply voltage24V
