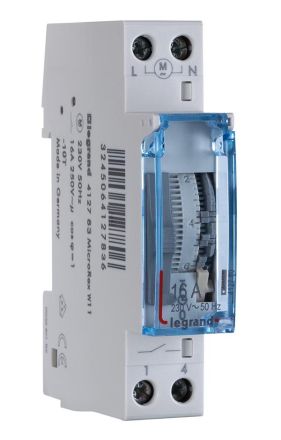

Legrand 412783 Micro W11 230v 50 Hz

In stock

SKU: 242552

Price on request

€43.04

€0

Overview

with hand switch, captive setting segments, pointer can be rotated forwards and backwards, power reserve (quartz motor) 100 h, mounting on DIN rail EN 50022, shortest switching time: MicroRex T11 = 15 min., Micro Rex T31 and QT31 (quartz motor) = 30 min.. Connection voltage: 230 V 50 Hz. 1 changeover contact 250 V 50Hz 16 A (ohmic)., MaxiRex W11, weekly timer, mains synchronized

Property	Value
Number of channels:	1
Protection class (IP):	IP20
24 h program:	no
Manual operation:	yes
Supply voltage:	230 V
Mounting type:	DIN rail
Type of supply voltage:	AC
Frequency of supply voltage:	50 Hz
Shortest switching time channel 1:	120 min
Contact design:	Normally open
Mains synchronous:	yes
Weekly program:	yes
Nominal switching current at 250 V AC:	16 A
Annual program:	no
Quartz controlled:	no
Automatic summer/winter time change:	no
Height:	83 mm
Width:	17.5 mm
Depth:	60 mm
Program disc division 1:	120 min
Switching preselection:	yes
Potential-free switching contact:	yes
60 min program:	no
