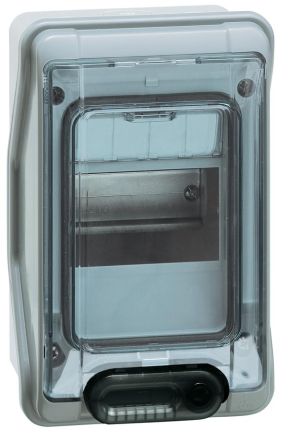

Legrand 601974 Surface-mounted distributor Ip65 1 row/ 4 mod

In stock
SKU: 239670
€26.81
Into a basketIn the basketGo

Overview

Plexo, according to IEC/EN 62208, for the construction of installation distributors according to IEC/EN 61439-3, for devices up to 63A, protection class II, self-extinguishing: 650 °C, temperature resistance -20 °C to + 70 °C, transparent doors, can be hinged on both sides, doors can be retrofitted with lock Order No. 019 66, can be sealed with sealing set Order No. 019 68, with pre-punching for metric cable entry, including membrane entries, removable mounting frame from 2-row distributors, rail spacing 150 mm, including N and PE terminals except type 601932 without N terminal.

Property Value
Width in pitch units: 4
Number of rows: 1
Height: 200 mm
Width: 128 mm
Depth: 115.6 mm
Protection rating (IP): IP65
Color: grey
Mounting type: Surface-mounted
With lock: yes
Transparent cover/door: yes
Housing material: Plastic
RAL number: 7046
DIN rail: yes
Mounting option: yes
EMC version: no
With mounting plate: no
Type of cover: Door
Cover version: closed
Inner depth: 48.5 mm

Characteristics

Insert Module TypeLight switch covers
ManufacturerLEGRAND
HAN601974
GTIN3245066019741
Cultivation optionYes
Number of rows1
Type of coverDoor
Cover designClosed
Width128 mm
Width in pitch units4
DIN railYes
EMC versionNo
ColorGray
Height200 mm
Internal depth48.5 mm
With mounting plateNo
With lockYes
Mounting typeSurface-mounted
RAL number7046
IP protection)IP65
Depth115.6 mm
Transparent lid/doorYes
Housing materialPlastic
Legrand 601974 Surface-mounted distributor Ip65 1 row/ 4 mod
Legrand 601974 Surface-mounted distributor Ip65 1 row/ 4 mod
€26.81
Into a basketIn the basketGo
