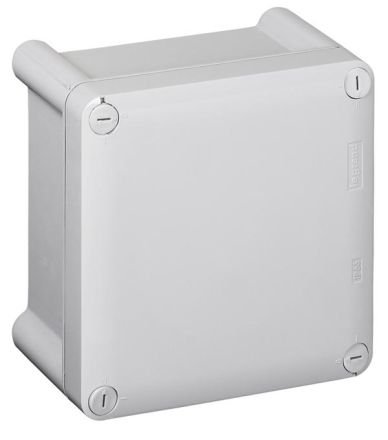

Legrand 035013 Junction box FR 130X130X74

In stock
SKU: 239794
€23.95
Into a basketIn the basketGo

Overview

Plastic housing) square plastic housing Smooth design IP 66 - IK 08 - 750°C Color: gray (similar to RAL7004) Halogen-free Self-extinguishing 750°C Temperature resistance: -25°C to +40°C Smooth design Lid cannot be lost due to securing connection between lid and box. From 130 x 130 mm integrated plug-in fields for terminal blocks. Lid can be closed with quick-release screws by 1/4 turn. From 105 x 105 mm quick-release screws cannot be lost. ) Internal dimensions

Property Value
Height: 150 mm
Width: 150 mm
Depth: 81 mm
Installation depth: 81 mm
Internal depth: 67 mm
Protection type (IP): IP66
Protection class: II
Impact resistance: IK08
Material of the housing: Plastic
RAL number: 7035
Mounting type: Surface-mounted
Suitable for outdoor use: yes
Surface: untreated
Suitable for lightning protection: yes
Mounting option: no
With Mounting plate: no
Number of cable entries: 4
Number of modules: 6
Number of rows: 1
Type of cover: Cover
Type of door: without
Cover design: closed
Width in division units: 6
Functional integrity: other
Material thickness housing: 2 mm
Material thickness door/lid: 2 mm
With lock: no
Transparent lid/door: no
Color: gray

Characteristics

Insert Module TypeLight switch covers
ManufacturerLEGRAND
HAN035013
GTIN3245060350130
Cultivation optionNo
Number of cable entries4
Number of modules6
Number of rows1
Type of coverLid
Type of doorWithout
Cover designClosed
Width150 mm
Width in pitch units6
Installation depth81 mm
ColorGray
Functional preservationOther
Suitable for outdoor useYes
Suitable for lightning protectionYes
Height150 mm
Internal depth67 mm
Housing material thickness2 mm
Material thickness door/lid2 mm
With mounting plateNo
With lockNo
Mounting typeSurface-mounted
SurfaceUntreated
RAL number7035
Impact resistanceIK08
IP protection)IP66
Protection classII
Depth81 mm
Transparent lid/doorNo
Housing materialPlastic
