Catalog

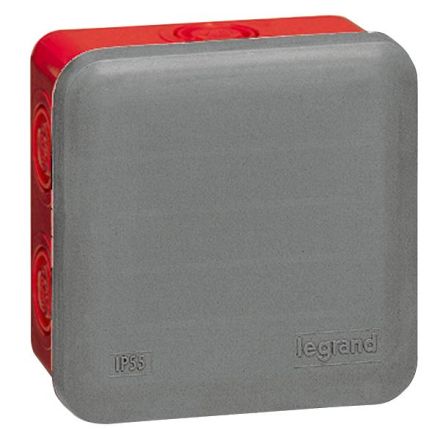

Legrand 092009 Junction box FR FLW 80X80X45 7E , (red)

In stock
SKU: 242237
€6.04
Into a basketIn the basketGo

Overview

Junction box Plexo) square junction box cable entry with pre-punching for metric cable entry. IP 55 - IK 07 - 960°C Color: red RAL3000/gray RAL7037 Self-extinguishing 960°C For marking emergency lighting circuits in accordance with DIN0108 Temperature resistance: -25°C to +40°C Pre-punching for metric cable entries. Tool-free insertion of pipes or cables up to 16mm using membrane technology. Non-losable cover thanks to securing connection between cover and box. From 130 x 130 mm integrated plug fields for terminal blocks. Cover can be closed with quick-release screws by 1/4 turn. From 105 x 105 mm quick-release screws are non-losable. Snap-on lid) Internal dimensions

Property Value
Width: 94 mm
Length: 94 mm
Depth: 52 mm
Color: red
Protection class (IP): IP55
Number of entries: 7
Halogen-free: yes
Equipment: without
Mounting type: universal
Material: plastic
Cover fastening: snap-on
Sealable: no
Can be arranged in rows: no
Shape: square
Max. Conductor cross-section: 20 mm²
Type of housing feedthrough: Pre-punched
For Ex-Zone Gas: without
Functional integrity: without
Explosion-tested version: no
Potting compound supplied: no
Potable: no
For Ex-Zone Dust: without
Installation under water: no
Transparent cover: no
Installation in the ground: no
Surface: untreated
For pipe diameter: 20 mm
With shielding: no
Introduction from the rear: no
Weatherproof: yes
Design Lid: other
Operating temperature: -25 to 40 °C

Characteristics

Insert Module TypeLight switch covers
ColorRed
Explosion-tested versionNo
ManufacturerLEGRAND
HAN092009
GTIN3245060920098
Cover designOther
Width94 mm
Operating temperature-25 to 40 °C
ColorRed
ShapeSquare
Functional preservationWithout
Halogen freeYes
Length94 mm
Mounting typeUniversal
SurfaceUntreated
IP protection)IP55
Depth52 mm
MaterialPlastic
Legrand 092009 Junction box FR FLW 80X80X45 7E , (red)
Legrand 092009 Junction box FR FLW 80X80X45 7E , (red)
€6.04
Into a basketIn the basketGo
