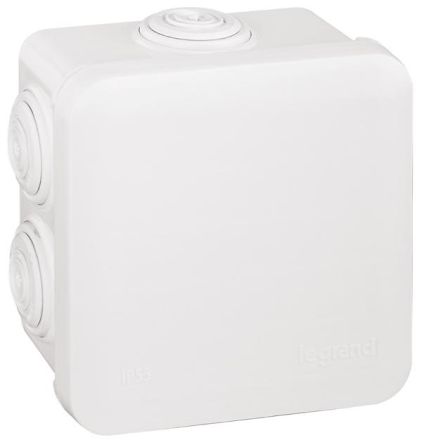

Legrand 092013 wet junction box Plexo box IP55 80x80x45mm, (white)

In stock

SKU: 242240

Price on request

€3.38

€0

Overview

Legrand junction box Plexo, square 80 x 80 x 45 mm (H x W x D), protection class IP 55 - IK 07, 7 membrane entries, snap-on cover, pure white RAL 9010, self-extinguishing 650°C, labelable cover.

Property	Value
Width:	94 mm
Length:	94 mm
Depth:	52 mm
Color:	white
Protection class (IP):	IP55
Number of entries:	7
Halogen-free:	yes
Equipment:	without
Mounting type:	universal
Material:	Plastic
Cover fastening:	snap-on
Sealable:	no
Can be arranged in series:	no
Shape:	square
Max. Conductor cross-section:	20 mm²
Type of housing feedthrough:	Step membrane can be cut off
For Ex zone gas:	without
Functional integrity:	without
Explosion-tested version:	no
Potting compound supplied:	no
Potable:	no
For Ex zone dust:	without
Installation under water:	no
Transparent cover:	no
Installation in the ground:	no
Surface:	untreated
For pipe diameter:	20 mm
With shielding:	no
Introduction from the rear:	no
Weatherproof:	yes
Cover design:	other
Operating temperature:	-25 to 40 °C
