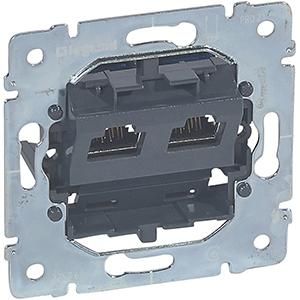

Legrand 775768 data socket Cat6 2-way shielded

In stock

SKU: 243648

Price on request

€24.75

€0

Overview

2-way with 8-pin plug face, 2 x 8 connection contacts shielded, according to EIA/TIA 568 A.

Property	Value
Category:	6
Surface-mounted:	no
Mounting type:	screws
Outlet direction:	angled
Sockets shielded:	yes
Duct installation:	no
Connector type:	RJ45 8(8)
Suitable for number of sockets/couplings:	2
Color coding:	yes
Connection type:	Insulation displacement terminal IDC
Separate earth connection:	no
Floor tank/underfloor installation:	yes
With text field:	no
Separate cable strain relief:	no
With sockets/couplings:	yes
Color:	other
With dust protection:	no
Mounting type shield connection:	other
Composition:	Base element with central cover plate
Device width:	71 mm
Device height:	71 mm
Device depth:	41.5 mm
