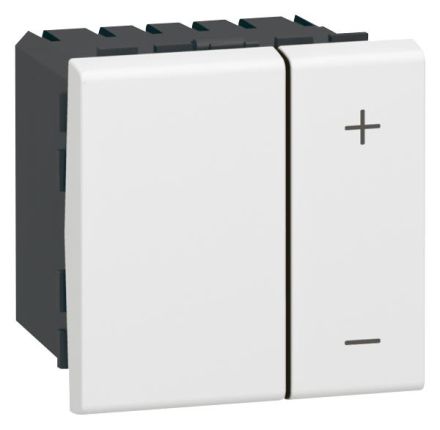

Legrand 078404 touch dimmer MOSAIC 1-10V Pot. 600VA 2mod ws , (white)

Legrand 078404 touch dimmer MOSAIC 1-10V Pot. 600VA 2mod ws , (white)

In stock

SKU: 244396

Price on request

€109.94

€0

Overview

2-button operation, left button ON/OFF, right button LIGHT/DARK, for switching and controlling electronic ballasts with control input 1 10 V, control current: max. 40 mA DC, switching capacity: 40,600 VA. Connection with neutral conductor (3-conductor). Color: white

Property	Value
Device height:	45 mm
Device width:	45 mm
Device depth:	33 mm
Connection type:	Screw terminal
Wire cross section:	2.5 mm²
Mounting type:	Module carrier
Nominal voltage:	240 V
Color:	white
Suitable for protection class (IP):	IP40
Halogen-free:	yes
Composition:	Modular device for installation switch programs
Load type:	other
Series dimmer:	no
Extension input:	yes
Light value memory:	no
Usable with button:	yes
Can be used with motion detector:	no
Can be used with presence detector:	no
Can be used with timer:	no
Can be used with radio button:	no
Can be used with IR button:	no
Mounting type:	Mounting with screw
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	glossy
RAL number (similar):	9003
Frequency:	47 to 63 Hz
Control voltage:	90 to 254 V
Transparent:	no
Number of modules (with Modular design):	2
App control via Bluetooth:	no
Impact resistance:	IK02
