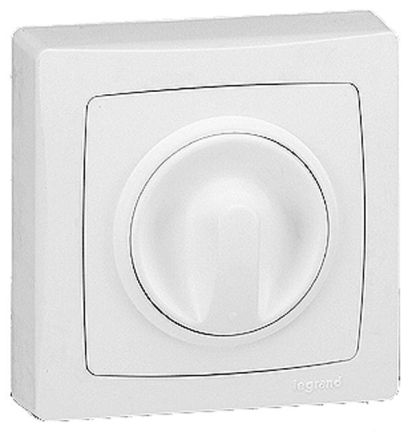

Legrand 086068 Dimmer AP DIMMER 300 W, (white)

In stock
SKU: 244401
€40.42
Into a basketIn the basketGo

Overview

40 to 300 W for incandescent and 230 V halogen lamps or 40 to 300 VA for low-voltage halogen lamps with conventional transformer

Property Value
Device height: 60 mm
Device width: 60 mm
Device depth: 22 mm
Connection type: Screw terminal
Wire cross section: 2.5 mm²
Mounting type: Surface-mounted
Nominal voltage: 230 V
Color: white
Suitable for protection class (IP): IP40
Operating method: Rotary knob
Halogen-free: yes
Composition: Base element with complete housing
Load type: inductive load
Series dimmer: no
Extension input: no
Light value memory: no
Can be used with button: no
Can be used with motion detector: no
Can be used with presence detector: no
Can be used with timer: no
Can be used with radio button: no
Can be used with IR button: no
Mounting type: other
Material: plastic
Material quality: thermoplastic
Surface: painted
Surface finish: glossy
RAL number (similar): 9003
Frequency: 47 to 53 Hz
Control voltage: 207 to 245 V
Transparent: no
Number of modules (with modular design): 2
App control via Bluetooth: no
Impact resistance: IK02

Characteristics

Insert Module TypeLight switch covers
ColorWhite
Core cross-section2.5 mm²
ManufacturerLEGRAND
HAN086068
GTIN3245060860684
Connection typeScrew terminal
Number of modules (for modular construction)2
Surface finishGlittering
Operating moderotary knob
Mounting typeOther
ColorWhite
Frequency47 to 53 Hz
Suitable for outdoor useNo
Suitable for protection class (IP)IP40
Device width60 mm
Device height60 mm
Device depth22 mm
Halogen freeYes
Mounting typeSurface-mounted
Extension inputNo
Nominal voltage230V
SurfacePainted
RAL number (similar)9003
Impact resistanceIK02
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBase element with complete housing
