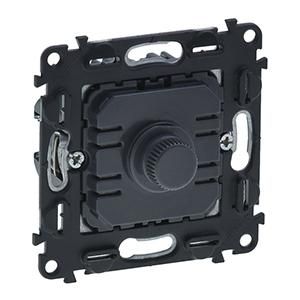

Legrand 752060 universal rotary dimmer 300W built-in, (natural)

In stock
SKU: 244406
€31.26
Into a basketIn the basketGo

Overview

Valena InMatic, universal rotary dimmer 300 W without neutral conductor, leading/trailing edge, 5 - 300 W, 2-wire connection (without N-wire) with screw terminals - Extension operation (switching and dimming) using conventional unlit normally open pushbuttons (max. cable length 50 m) - Soft start/soft stop to protect the bulbs. Suitable for the following dimmable bulbs: - Incandescent and HV halogen lamps: 5 - 300 W - LV halogen lamps with electronic or conventional transformer: 5 - 300 VA - Dimmable LED or compact fluorescent lamps: 5 - 75 W (max. 10 lamps)

Feature Value
Device height: 74.7 mm
Device width: 74.7 mm
Device depth: 32 mm
Connection type: Screw terminal
Wire cross section: 2.5 mm²
Mounting type: Flush-mounted
Nominal voltage: 230 V
Color: black
Suitable for protection class (IP): IP40
Operating mode: Rotary/push button
Halogen-free: yes
Composition: Basic element
Load type: universal
Series dimmer: no
Extension input: yes
Light value memory: yes
Can be used with button: yes
Can be used with Motion detector: no
Can be used with presence detector: no
Can be used with timer: no
Can be used with radio button: yes
Can be used with IR button: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: glossy
Frequency: 47 to 63 Hz
Control voltage: 90 to 243 V
Transparent: no
App control via Bluetooth: no
Impact resistance: IK02

Characteristics

Insert Module TypeDimmer switches
Core cross-section2.5 mm²
ManufacturerLEGRAND
HAN752060
GTIN3414970465139
Connection typeScrew terminal
Surface finishGlittering
Operating modeRotary/push button
Mounting typeClaw/screw fastening
ColorBlack
Frequency47 to 63 Hz
Suitable for outdoor useNo
Suitable for protection class (IP)IP40
Device width74.7 mm
Device height74.7 mm
Device depth32 mm
Halogen freeYes
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage230V
SurfaceUntreated
Impact resistanceIK02
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
