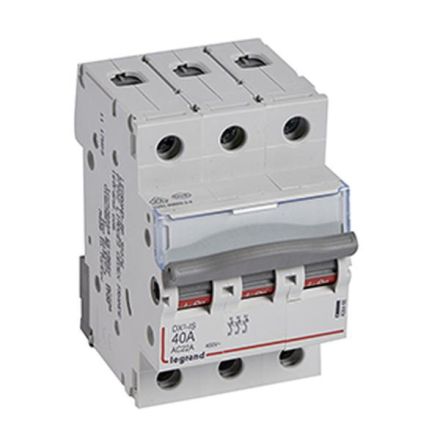

Legrand 406466 load-break switch DX3 TOGGLE SWITCH OFF 3P 40A

Legrand 406466 load-break switch DX3 TOGGLE SWITCH OFF 3P 40A

In stock

SKU: 246222

Price on request

€50.21

€0

Overview

Legrand load-break switch DX3, 3-pole, 40A 400 VAC, in accordance with EN 60947-3, EN 60669-2-4. Utilization category AC-22A. Fastening to top-hat rail EN 60715 using quick-locking fasteners, clear information on the front of each device, clear red/green switch position indicator on the switch lever (lockable), with labeling window, single-pole busbar mounting using Legrand pin comb bars, attachment of auxiliary devices possible.

Property	Value
Number of poles:	3
Rated continuous current Iu:	40 A
Max. Rated operating voltage Ue at AC:	400 V
Design as EMERGENCY STOP device:	no
Protection class (IP), front:	IP20
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Toggle
Suitable for floor mounting:	no
Conditional Rated short-circuit current Iq:	4500 kA
Integrated motor drive:	no
Suitable for front mounting 4-hole:	no
Version as maintenance/repair switch:	no
Suitable for front mounting central:	no
Suitable for intermediate installation:	no
Suitable for distribution board installation:	yes
Version as Main switch:	yes
Designed as safety switch:	yes
Motor drive optional:	no
Lockable:	yes
