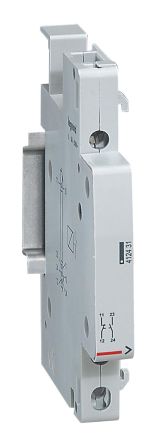

Legrand 412431 auxiliary switch CX3 20A

In stock

SKU: 246196

Price on request

€43.25

€0

Overview

Auxiliary switch for signaling the switching position, for installation contactors 40 A and 63 A of the Legrand CX3 series. Tool-free installation by simply clipping onto the left side of the main device, maximum of 1 auxiliary switch per installation contactor. Contact type: 1S + 1Ö, Imax 5 A 250 V AC, device width 0.5 pitch units

Property	Value
Rated switching current:	5 A
Rated voltage:	250 V
Device mounting:	Contactors/relays
Factory-fitted:	no
Suitable for max. number of poles of the main contact unit (total):	4
Suitable for max. current of the Main contact unit:	63 A
With autotest for residual current function:	no
Number of contacts as normally open:	1
Number of contacts as normally closed:	1
