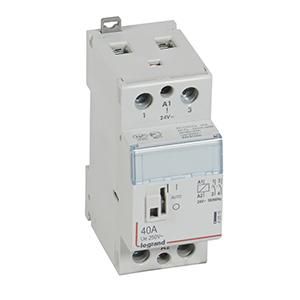

Legrand 412515 Installation contactor CX3 24V 40A 2S M.HD

In stock
SKU: 240115
€71.94
Into a basketIn the basketGo

Overview

Legrand installation contactor CX3, coil voltage AC 24 V, 2-pole, design: 2 normally open contacts, rated operating current Ie 40 A/ 250 VAC, with manual switch. According to EN 61095, usage category AC-1/AC-7a and AC-3/AC-7b, installation contactors for switching loads such as lamp groups, motors and heaters, with labeling window, with switching status indicator, fastening to top hat rail EN 60715 using quick-locking fastening, attachment of auxiliary switches possible.

Property Value
Type of operating voltage: AC
Degree of protection (IP): IP2X
Max. incandescent lamp load: 5000 W
Rated operating current: 40 A
Rated operating voltage: 250 V
Max. fluorescent lamp load (parallel compensated): 1400 VA
Max. fluorescent lamp load (duo circuit): 3400 VA
Max. Fluorescent lamp load: 3100 VA
Additional equipment possible: yes
Slider for manual switching: yes
Type of actuating voltage: AC
Installation depth: 44 mm
Rated actuating voltage: 20 to 26 V
Usage category: 1
Number of contacts as normally open: 2

Characteristics

Insert Module TypeLight switch covers
Rated operating current40 A
Max. fluorescent lamp load3100 VA
ManufacturerLEGRAND
HAN412515
GTIN3245064125154
Number of contacts as normally open2
Rated operating voltage250V
Installation depth44 mm
IP protection)IP2X
Additional equipment possibleYes
