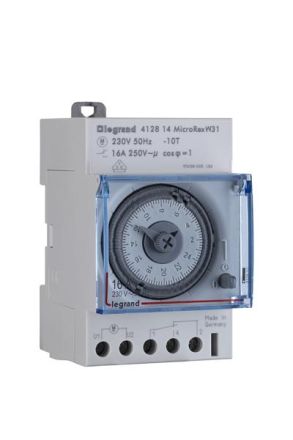

Legrand 412814 W31 weekly timer MicroRex

In stock
SKU: 409915
€52.56
Into a basketIn the basketGo

Overview

Legrand MicroRex W31, analog weekly timer with synchronous motor (mains-synchronous accuracy) for distribution board installation, 1 channel, operating voltage 230 V 50 Hz, with manual switch: ON-automatic-OFF, with captive switching segments, pointer can be rotated forwards and backwards, making it very easy to set e.g. summer and winter time, cover can be sealed, shortest switching time: 4 hours. Switching output: 1 changeover contact.

Property Value
Number of channels: 1
Protection class (IP): IP20
24 h program: no
Manual operation: yes
Supply voltage: 230 V
Mounting type: DIN rail
Type of supply voltage: AC
Frequency of supply voltage: 50 to 60 Hz
Shortest switching time channel 1: 240 min
Contact design: Changeover contact
Mains synchronous: yes
Weekly program: yes
Nominal switching current at 250 V AC: 16 A
Annual program: no
Quartz-controlled: no
Automatic summer/winter time change: no
Height: 83 mm
Width: 52.5 mm
Depth: 60 mm
Program disc division 1: 120 min
Switching preselection: yes
Potential-free switching contact: yes
60 min program: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
ManufacturerLEGRAND
HAN412814
GTIN3245064128148
Width52.5 mm
Height83 mm
Mounting typeDIN rail
IP protection)IP20
Depth60 mm
Supply voltage230V
