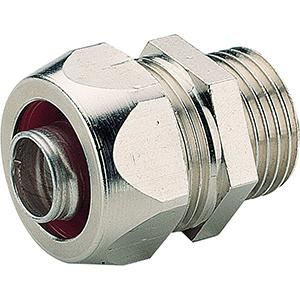

Legrand 382013 screw connection M2000 G4'

Legrand 382013 screw connection M2000 G4'

In stock

SKU: 244974

Price on request

€608.55

€0

Into a basketIn the basketGo

Overview

Screw connection G4, ø-hose: inside: 102 mm

Property	Value
Protection class (IP) depending on hose:	65
Nominal diameter:	10 mm
Largest outside diameter of hose:	115 mm
Smallest inside diameter of hose:	102 mm
Thread connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	yes
Thread length:	21 mm
Rotatable thread:	yes
Nominal size in inches:	4 inches
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-15 to 60 °C
Thread type:	gas pipe thread
Number of entries:	1
With earth connection:	no

Characteristics

Insert Module TypeLight switch covers

One-pieceNo

Smallest inner diameter of the hose102 mm

Approved in combination with protective hose DIN EN 61386-23Yes

Protection class (IP) depends on hose65

With earth connectionNo

Manufacturer

HAN382013

GTIN8009561117303

VersionStraight

DesignExternal thread

Rotating threadYes

Operating temperature-15 to 60 °C

Thread connection sizeOther

Thread typeGas pipe thread

Thread length21 mm

Nominal diameter10 mm

Nominal size in inches4 inches

SurfaceNickel-plated

Housing materialBrass
