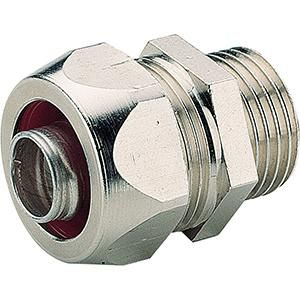

Screw connection NPT1/4, inner hose ø: 10 mm
| Property | Value |
| Protection class (IP) depending on hose: | 65 |
| Nominal diameter: | 10 mm |
| Largest outer diameter of hose: | 16 mm |
| Smallest inner diameter of hose: | 10 mm |
| Thread connection size: | other |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Thread length: | 8 mm |
| Rotatable thread: | yes |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Perm. in combination with protective hose UL: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -15 to 60 °C |
| Thread type: | NPT |
| Number of entries: | 1 |
| With earth connection: | no |
