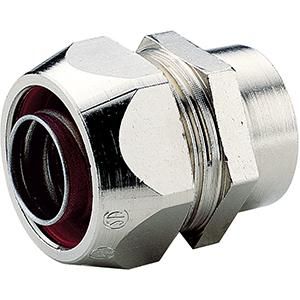

Legrand 382210 screw connection 2000 G2 1/2'

Legrand 382210 screw connection 2000 G2 1/2'

In stock

SKU: 245053

Price on request

€206.31

€0

Into a basketIn the basketGo

Overview

Screw connection G2 1/2, inner hose diameter: 63 mm

Property	Value
Protection class (IP) depending on hose:	65
Nominal diameter:	63 mm
Largest outer diameter of hose:	73 mm
Smallest inner diameter of hose:	63 mm
Thread connection size:	other
Perm. in combination with protective hose DIN EN 61386-23:	yes
Thread length:	21 mm
Rotatable thread:	yes
Nominal size in inches:	2 1/2 inches
Design:	straight
Construction:	external thread
One-piece:	no
Perm. in combination with protective hose UL:	no
Material of the housing:	brass
Surface:	nickel-plated
Operating temperature:	-15 to 60 °C
Thread type:	gas pipe thread
Number of entries:	1
With earth connection:	no

Characteristics

Insert Module TypeLight switch covers

One-pieceNo

Smallest inner diameter of the hose63 mm

Approved in combination with protective hose DIN EN 61386-23Yes

Protection class (IP) depends on hose65

With earth connectionNo

Manufacturer

HAN382210

GTIN8009561118348

VersionStraight

DesignExternal thread

Rotating threadYes

Operating temperature-15 to 60 °C

Thread connection sizeOther

Thread typeGas pipe thread

Thread length21 mm

Nominal diameter63 mm

Nominal size in inches2 1/2 inch

SurfaceNickel-plated

Housing materialBrass
