Legrand 387377 hose NGDAX52 (AISI 304), (metallic)

Legrand 387377 hose NGDAX52 (AISI 304), (metallic)

In stock

SKU: 244779

Price on request

€276.07

€0

Into a basketIn the basketGo

Overview

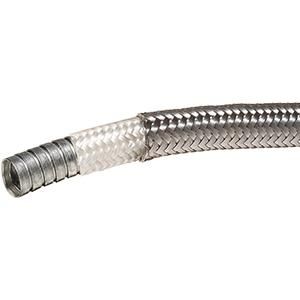

Cable protection hose, Ø hose: inside: 50.5 mm, outside: 59 mm

Property	Value
Nominal diameter:	51 mm
Surface:	galvanized
Sheathing material 1st layer:	Polyvinyl chloride (PVC)
Nominal size in inches:	other
Inner diameter:	50.5 mm
Outer diameter:	59 mm
Seal:	without seal
Compressive strength:	1250 N
Operating temperature:	-45 to 250 °C
Bending radius, static:	195 mm
Electrical properties:	with conductive properties
Material:	stainless steel
Protection class (IP):	IP42
Bending behavior:	flexible

Characteristics

Insert Module TypeLight switch covers

Inner diameter50.5 mm

Bending radius, static195 mm

Bending behaviorFlexibel

Minimal order25 meters

Manufacturer

HAN387377

GTIN8009561526358

Outer diameter59 mm

Operating temperature-45 to 250 °C

Nominal diameter51 mm

Nominal size in inchesOther

SurfaceGalvanized

IP protection)IP42

MaterialStainless steel
