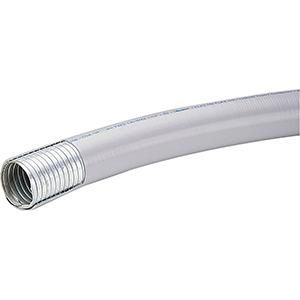

Legrand 387534 Metal protection hose LA14 15, 24M , (grey)

Legrand 387534 Metal protection hose LA14 15, 24M , (grey)

In stock

SKU: 244816

Price on request

€1,128.33

€0

Into a basketIn the basketGo

Overview

Cable protection hose, hose diameter: inside: 35.4 mm, outside: 42 mm, type: LA14, color: gray

Property	Value
Nominal diameter:	35 mm
Surface:	galvanized
Sheathing material 1st layer:	polyvinyl chloride (PVC)
Sheathing material 2nd layer (outer):	without sheath
Nominal size in inches:	other
Inner diameter:	35.4 mm
Outer diameter:	42 mm
Seal:	without seal
Operating temperature:	-20 to 60 °C
Bending radius, static:	350 mm
Color:	gray
Electrical properties:	with conductive properties
Flame-spreading:	yes
UL approved:	yes
Material:	steel
Protection class (IP):	IP65
Bending behavior:	flexible

Characteristics

Insert Module TypeLight switch covers

Inner diameter35.4 mm

Bending radius, static350 mm

Bending behaviorFlexibel

Flame propagatingYes

Manufacturer

HAN387534

GTIN8009561099074

Outer diameter42 mm

Operating temperature-20 to 60 °C

Color

Nominal diameter35 mm

Nominal size in inchesOther

SurfaceGalvanized

IP protection)IP65

MaterialSteel

Legrand 387534 Metal protection hose LA14 15, 24M , (grey)

Legrand 387534 Metal protection hose LA14 15, 24M , (grey)

Price on request

€1,128.33

€0

Into a basketIn the basketGo
