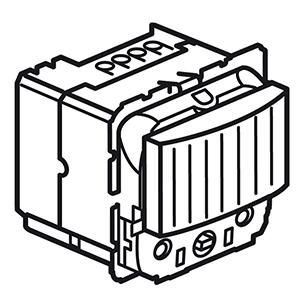

Bticino 067225 motion detector MYHOME PIR , (white)

In stock

SKU: 242929

Price on request

€133.43

€0

Overview

Motion detector with passive infrared detection and brightness sensor. The settings are made using configurators or remote control Order No. BMSO4003 or BMSO4001. Detection range 180°, power supply BUS 27 V DC, 2 modules.

Property	Value
Installation height:	1.2 m
Installation type:	Flush-mounted
Design:	Motion detector
Constant light control:	yes
Adjustable response sensitivity:	yes
Horizontal detection angle:	0 to 180 °
Creep under protection/rear field monitoring:	yes
Min. duty cycle:	30 s
Max. duty cycle:	256 min
Max. range to one side:	3 m
Max. Frontal range:	8 m
Detection field diameter on floor:	6 m
HVAC control:	no
Response brightness adjustable:	yes
Networkable:	yes
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Suitable for protection class (IP):	IP41
Suitable for wireless transmission:	no
Color:	white
Staircase monitoring:	yes
Halogen-free:	yes
Animal corridor:	no
Material:	Plastic
Material quality:	Thermoplastic
RAL number (similar):	9003
Operating mode switch:	no
