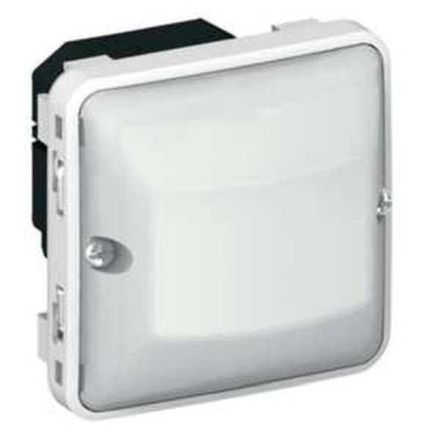

Legrand 69520 motion detector PLEXO Komfort 2-L, (grey)

In stock
SKU: 242414
€91.53
Into a basketIn the basketGo

Overview

2-wire motion detector PLEXO KOMFORT 2-wire connection (without N-wire) with screw terminals, AUTOMATIC operation, detection range: 120°, detection range: 8 m fixed, brightness threshold: 5 1275 lux, switch-off delay: 10 sec. - 10 min., optimal installation height: 1.1 meters, suitable for the following load types: incandescent and HV halogen lamps: 3 - 250 W LEDs, fluorescent and compact fluorescent lamps and LV halogen lamps with electronic or conventional ballast: 3 - 250 VA LED or compact fluorescent lamps: 3 - 100 W with sensors connected in parallel (max. 2)

Property Value
Depth: 31 mm
Width: 70.5 mm
Height: 70.5 mm
Design: motion detector
Color: gray
Rated voltage: 230 V
Material: plastic
Mounting type: flush-mounted
Response brightness: 5 to 1275 lx
Protection class (IP): IP55
Max. switching capacity: 250 W
Voltage type: AC
Max. range to one side: 6 m
Min. duty cycle: 10 s
Max. Duty cycle: 10 min
Creep-under protection/rear field monitoring: no
Temperature: -5 to 45 °C
Adjustable response brightness: yes
Adjustable response sensitivity: no
Max. Frontal range: 8 m
Sensor type: passive infrared
Optimal mounting height: 1.2 m
Surface finish: matt
Surface: other
Material quality: thermoplastic
Detection field diameter on floor: 6 m
Number of switching zones: 1
Horizontal detection angle: 120 °
Frequency: 47 to 63 Hz
Halogen-free: yes
Constant light control: no
HVAC control: no
Forced shutdown: no
Animal corridor: no
Networkable: no
Staircase monitoring: yes
Bypass switch: no
Suitable for wireless transmission: no
Remote controllable: no
With signal unit: no
Alarm function: no
Teach function for response brightness: no
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: yes
With DALI interface: no
Extension input: no
Connection type: Screw terminal
Antibacterial treatment: no
Impact resistance: IK07
Installation depth: 31 mm
Read more

Characteristics

Insert Module TypeLight switch covers
Bridging switchNo
With signal unitNo
Number of switching zones1
Response brightness5 to 1275 lx
Forced shutdownNo
ManufacturerLEGRAND
HAN069520
GTIN3414970935427
Dimming function with dimming insertNo
Alarm functionNo
Connection typeScrew terminal
Response sensitivity adjustableNo
Response brightness adjustableYes
Antibacterial treatmentNo
VersionMotion detector
Surface finishFrosted
Width70.5 mm
Installation depth31 mm
Detection field diameter on floor6m
Detection angle horizontal120°
ColorGray
Remote controllableNo
Frequency47 to 63 Hz
Suitable for C-loadYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Height70.5 mm
Constant light controlNo
Max. duty cycle10mins
Max. range frontal8m
Max. range to one side6m
Max. switching capacity250W
Min. duty cycle10s
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputNo
Nominal voltage230V
SurfaceOther
Optimal mounting height1.2m
Impact resistanceIK07
IP protection)IP55
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessNo
Temperature-5 to 45 °C
Depth31 mm
Animal corridorNo
TransparentNo
Staircase monitoringYes
Creep protection/rear field monitoringNo
NetworkableNo
MaterialPlastic
Material qualityThermoplastic
