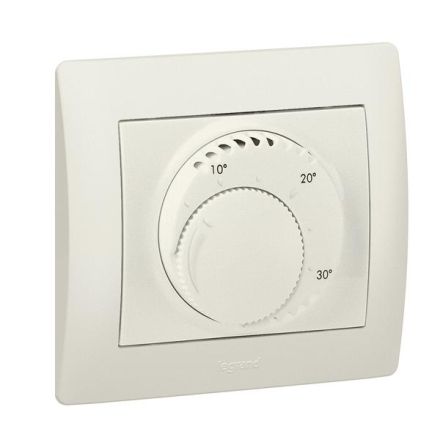

Legrand 775687 room thermostat changeover contact Galea mother of pearl, (bright white)

In stock

SKU: 243688

Price on request

€100.41

€0

Overview

Bimetal thermostat with thermal feedback. Temperature range: +5 to +30°, range can be restricted using the setting knob, switching output: 1 changeover contact, switching current: 5 A at cos= 1.2 A at cos= 0.6. Color: mother of pearl

Property	Value
Type of power supply:	230 V AC
Mounting type:	Flush-mounted
Protection class (IP):	IP30
Height:	71 mm
Width:	71 mm
Depth:	47 mm
Heating:	yes
Number of heating outputs:	1
Number of cooling outputs:	1
With display:	no
Operation:	Rotary
Connection:	three-/four-wire
With receiver:	no
Sensor external:	no
Thermal feedback:	without
Control characteristics:	other
Difference value:	2 K
Difference adjustable:	no
Temperature readable:	no
With noise level display:	no
Sensor design:	other
Number of modules (with modular design):	1
With drinking water circuit:	no
Max. voltage of contacts:	250 V
Max. contact load:	5 A
Explosion-proof:	no
