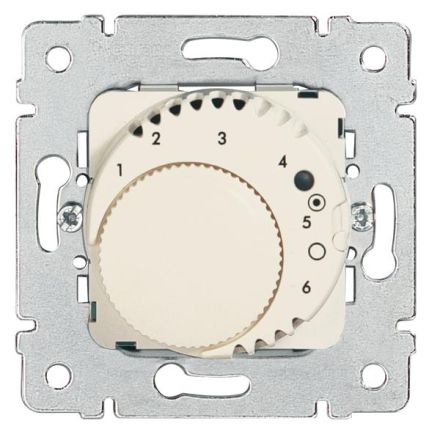

Legrand 775858 insert, (bright white)

In stock

SKU: 243700

Price on request

€143.65

€0

Overview

Electronic, with remote sensor, separate control input for night-time reduction and manual switch ON/OFF. LED display: night-time reduction green/heating red. Temperature range: +10 to +60°, range can be restricted using the setting knob, switching output: 1 normally open contact, switching current: 16 (8) A 250V~. Color: ultra white

Property	Value
Type of power supply:	230 V AC
Mounting type:	Flush-mounted
Protection class (IP):	IP30
Height:	71 mm
Width:	71 mm
Depth:	47 mm
Heating:	yes
Number of heating outputs:	1
Number of cooling outputs:	1
With display:	no
Operation:	rotary
Connection:	three-/four-wire
With receiver:	no
External sensor:	yes
Thermal feedback:	without
Control characteristics:	other
Difference value:	2 K
Difference adjustable:	no
Temperature readable:	no
With noise level display:	no
Sensor design:	other
Number of modules (with modular design):	1
With drinking water circuit:	no
Max. voltage of contacts:	250 V
Max. contact load:	16 A
Explosion-proof:	no
