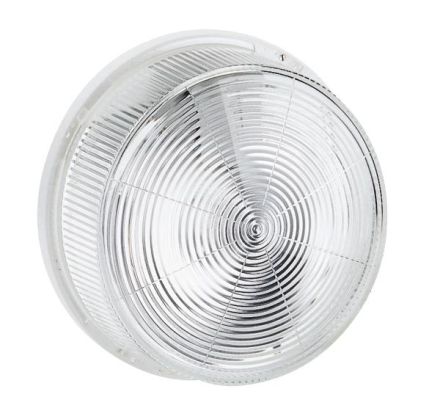

Legrand 060459 plastic round light 60459

Legrand 060459 plastic round light 60459

In stock

SKU: 242787

Price on request

€23.12

€0

Overview

Damp room luminaires, direct connection (from the side or the back), delivered without light source, IP 44 - IK 07, round - protection class II, base made of polypropylene, cover made of polycarbonate, cover with bayonet lock, porcelain socket, for 100 W light bulbs, white, E 27 socket

Property	Value
Max. System power:	70 W
Rated luminous flux according to IEC 62722-2-1:	1200 lm
Suitable for number of lamps:	1
Length:	230 mm
Width:	230 mm
Height/depth:	105 mm
Protection rating (IP):	IP44
Protection class:	II
Luminaire with limited surface temperature 'D-mark':	no
Nominal voltage:	110 to 230 V
Housing color:	white
Housing material:	plastic
Color temperature:	2700 K
Impact resistance:	IK07
Color rendering index CRI:	90-100
Suitable for ceiling mounting:	yes
Suitable for wall mounting:	yes
Outer diameter:	230 mm
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam >80°
With light source:	no
Light source:	Incandescent lamp
Rated ambient temperature according to IEC62722-2-1:	-10 to 40 °C
Socket:	E27
With control gear:	no
Cover material:	opal plastic
Light distributor:	diffuser lens/optics/panel
Without dimming function:	yes
Light emission:	direct
Light distribution:	asymmetrical
With light sensor:	no
Operating device:	not required
Suitable for recessed mounting:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendulum suspension:	no
Suitable for surface mounting:	yes
Suitable for emergency lighting:	no
Installation length:	230 mm
Design of the grid:	without
Covering of the luminaire with thermal insulation material possible:	no
DMX dimming:	no
DSI dimming:	no
With air slots:	no
Dimming LineSwitch:	no
Dimming potentiometer (device integrated):	no
Dimming 0-10 V:	no
Dimming GPRS:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Dimming depends on the operating device:	no
Suitable for lamp power:	70 W

Characteristics

Insert Module TypeLight switch covers

Manufacturer

HAN060459

GTIN3245060604592

Covering the luminaire with thermal insulation material possibleNo

Execution of the gridWithout

Outer diameter230 mm

Rated luminous flux according to IEC 62722-2-11200lm

Rated ambient temperature according to IEC62722-2-1-10 to 40 °C

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width230 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Installation length230 mm

Color temperature2700K

Color rendering index CRI90-100

VersionE27

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for lamp power70W

Suitable for number of lamps1

Suitable for light strip configurationNo

Suitable for emergency lightingNo

Suitable for pendulum suspensionNo

Suitable for wall mountingYes

Housing colorWhite

Height/Depth105 mm

Luminaire with limited surface temperature D-markNo

LampsLight bulb

Light emissionDirect

Light colorWhite

Light distributorDiffuser lens/optics/panel

Light distributionAsymmetrical

Length230 mm

Max. system performance70W

With operating deviceNo

With motion detectorNo

With light sourceNo

With light sensorNo

With air slotsNo

Nominal voltage110 to 230 V

Without dimming functionYes

Impact resistanceIK07

IP protection)IP44

Protection classII

Voltage typeAC

Cover materialPlastic opal

Housing materialPlastic
