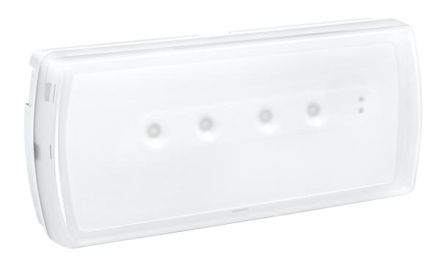

Legrand 661605 LED emergency light U21 160LM 1STD B IP42

Legrand 661605 LED emergency light U21 160LM 1STD B IP42

In stock

SKU: 242895

Price on request

€48.19

€0

Overview

LED standby lights certified according to IEC and EN 60598-2-22, with high-performance LEDs. Screw terminals 2 x 2.5 mm2, protection class IP 42 and impact resistance IK 04, nominal operating time 1 and 3 hours, Ni-Cd or Ni-MH battery, recharge time 24 hours, charge monitoring via green LED, supply voltage: 230 V +/-10%, 50/60 Hz Class II, flush-mounted installation for ceiling and wall mounting with installation box (order no. 661720/061721) possible. Standard emergency lights with manual function test require manual shutdown of the voltage to test the emergency light.

Property	Value
Housing color:	white
Protection rating (IP):	IP42
Protection class:	II
Voltage type:	AC
Color temperature:	5700 K
Length:	244 mm
Width:	109 mm
Height/Depth:	57.5 mm
Max. System performance:	16 W
Battery type:	NiCd
Nominal operating time:	1 h
Rated luminous flux according to IEC 62722-2-1:	160 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK04
Socket:	other
Nominal voltage:	230 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting
Housing material:	Plastic
Suitable for marking type:	Sticker
Feed:	decentralized (single battery)
Function:	Escape route lighting/marking
With pictogram:	no
Number of light heads:	1
LED nominal current at constant current:	70 mA
Light distributor:	Diffuser lens/optics/panel
Luminaire with limited surface temperature 'D-mark':	no
Number of poles:	4
Conductor cross-section:	2.5 mm²
Connection type:	screw connection
