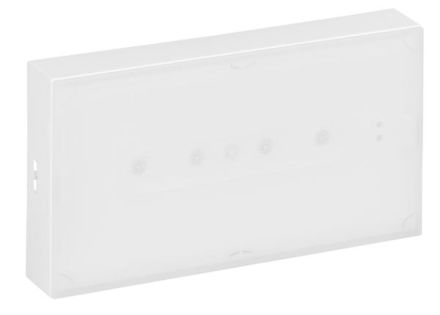

Legrand 661622 safety light URAONE 160LM 1STD B IP42

Legrand 661622 safety light URAONE 160LM 1STD B IP42

In stock

SKU: 242898

Price on request

€55.21

€0

Overview

Standard emergency lights with manual function test require the voltage to be switched off manually in order to test the emergency light. Standby mode, 160 lm, 1 hour (LEDs).

Feature	Value
Housing color:	white
Protection rating (IP):	IP42
Protection class:	II
Voltage type:	AC
Color temperature:	5700 K
Length:	210 mm
Width:	110 mm
Height/Depth:	41 mm
Max. System performance:	16 W
Battery type:	NiCd
Nominal operating time:	1 h
Rated luminous flux according to IEC 62722-2-1:	160 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK07
Socket:	other
Nominal voltage:	230 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting
Housing material:	Plastic
Suitable for marking type:	Sticker
Supply:	decentralized (single battery)
Function:	Escape route lighting/marking
With pictogram:	no
Number of light heads:	1
LED nominal current at constant current:	70 mA
Light distributor:	Diffuser lens/optics/panel
Luminaire with limited surface temperature 'D-mark':	no
Number of poles:	4
Conductor cross-section:	2.5 mm²
Connection type:	screw connection
