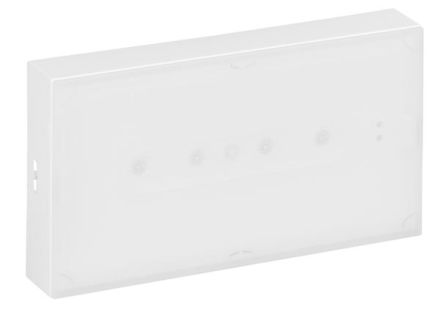

Legrand 661634 safety light URAONE 350LM 1STD BD IP42

Legrand 661634 safety light URAONE 350LM 1STD BD IP42

In stock

SKU: 242900

Price on request

€91.74

€0

Overview

Standard emergency lights with manual function test require the voltage to be switched off manually in order to test the emergency light. This light can be operated in maintained or non-maintained mode depending on the wiring. Maintained/standby mode, 350 lm, 1 hour.

Feature	Value
Housing color:	white
Protection rating (IP):	IP42
Protection class:	II
Voltage type:	AC
Color temperature:	5700 K
Length:	210 mm
Width:	110 mm
Height/Depth:	41 mm
Max. System performance:	35 W
Battery type:	NiCd
Nominal operating time:	1 h
Rated luminous flux according to IEC 62722-2-1:	350 lm
Luminous flux in standby mode:	100 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK07
Socket:	other
Rated voltage:	230 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	without
Mounting type:	Wall mounting
Material of the housing:	Plastic
Suitable for type of marking:	Sticker
Supply:	decentralized (single battery)
Function:	Escape route lighting/marking
With pictogram:	no
Number of light heads:	1
LED nominal current at constant current:	150 mA
Light distributor:	Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:	209000 h
Luminaire with limited surface temperature 'D-mark':	no
Number of poles:	5
Conductor cross-section:	2.5 mm²
Connection type:	screw connection
