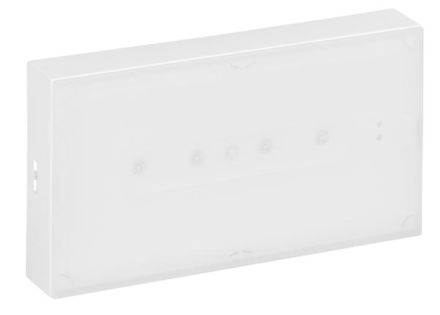

Legrand 662640 safety light URAONE 100LM 3STD BD AAT IP42

Legrand 662640 safety light URAONE 100LM 3STD BD AAT IP42

In stock

SKU: 242918

Price on request

€112.42

€0

Overview

Single battery light, addressable with integrated self-test function. The result is displayed on the two signal LEDs (green = OK and yellow = DEFECTIVE). The lights can be operated either in permanent or standby mode. When using the monitoring center, the light must be addressed. Maintained / standby mode - 200 lm - 1h (LEDs)

Feature	Value
Housing color:	white
Protection rating (IP):	IP42
Protection class:	II
Voltage type:	AC
Color temperature:	6000 K
Length:	210 mm
Width:	110 mm
Height/Depth:	41 mm
Max. System performance:	10 W
Battery type:	NiMh
Nominal operating time:	3 h
Rated luminous flux according to IEC 62722-2-1:	100 lm
Luminous flux in standby mode:	100 lm
Operating device:	LED operating device, current-controlled
Light source:	LED not replaceable
Impact resistance:	IK07
Socket:	other
Nominal voltage:	230 V
With remote switch connection:	no
Cover material:	opal plastic
With light source:	yes
Monitoring device:	automatic self-test
Mounting type:	Wall mounting
Material of the housing:	Plastic
Suitable for type of marking:	Sticker
Supply:	decentralized (single battery)
Function:	Escape route lighting/marking
With pictogram:	no
Number of light heads:	1
LED nominal current at constant current:	43 mA
Light distributor:	Diffuser lens/optics/panel
Rated service life L70/B50 at 25 °C:	147000 h
Luminaire with limited surface temperature 'D-mark':	no
Number of poles:	5
Conductor cross-section:	2.5 mm²
Connection type:	screw connection
