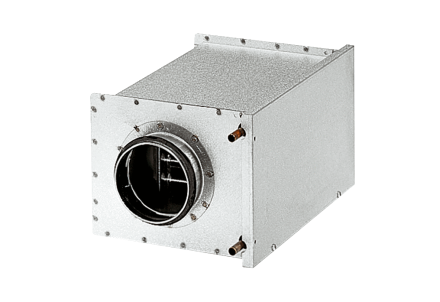

Water-air heater for ventilation systems. Copper connections. Housing cover can be removed for maintenance work. With rubber seal on the air connection nozzles. Article: WRH 16-2, Installation position: vertical / horizontal, Housing material: galvanized sheet steel, Weight: 5.33 kg, Weight with packaging: 5.73 kg, Nominal width: 160 mm, Free cross-section: 1458 cm2, Width: 305 mm, Height: 258 mm, Depth: 380 mm, Width with packaging: 275 mm, Height with packaging: 280 mm, Depth with packaging: 385 mm, Air heater type: Water, Heating output: 3800 W, Mass flow: 135 kg/h, Flow temperature: 70 °C, Return temperature: 50 °C, Max. water temperature: 100 °C, Max. water pressure: 6 bar, Water pressure difference: 6700 Pa, Suitable for box fans: no, Suitable for roof fans: no, Suitable for pipe fans: yes, Suitable for Heat recovery systems: yes, Suitable for wall-mounted fans: no, Suitable for wall-mounted fans: no, Suitable for residential fans: yes, Suitable for centrifugal fans: no, Suitable for circulation fans: no
| Property | Value |
| Length: | 380 mm |
| Width: | 305 mm |
| Height: | 258 mm |
