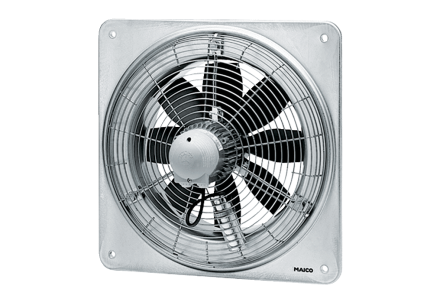

Maico 0083.0484 fan EZQ 20/4 E

AC version: Axial wall fan with square wall plate, in AC version. Brief description: Protective grille on the suction side, contact protection in accordance with DIN EN ISO 13857. 8-blade impellers made of glass fiber reinforced polyamide. Thermal overload protection as standard. Fans meet the requirements of the European Ecodesign Regulation (EC) No. 327/2011 Directive 2009/125/EC. Vibration-free operation thanks to dynamically balanced impeller and motor (shaft-rotor), in accordance with quality level 6.3, DIN ISO 1940, Part 1. High ventilation-side efficiency, low operating noise. Increased longevity thanks to high-quality materials such as low-noise ball bearings. Fans are maintenance-free. Reversible operation of the fans possible. Customer-specific special voltages available as special versions on request and for an additional charge. Installation for ventilation and exhaust ventilation possible in any position. Direction of conveyance: The direction of conveyance is marked. Standard exhaust air operation, direction of conveyance via motor suction. Motor: Asynchronous motor. Speed controllable. Exception: Type DZQ 40/2 B and DZS 40/2 B. Reversible. Exception: Fans with shaded pole motor (...-E). Not suitable for conveying air saturated with water vapor. AC motor: Asynchronous motor. Not suitable for conveying air saturated with water vapor. Rated voltage 230 V, 50 Hz. Fans ... B: Capacitor motors with operating capacitor on the protective grille or on the wall sleeve, protection class IP 55. Fans ... D: Capacitor motors with operating capacitor in the terminal box, protection class IP 54. Fans ... E: Shaded pole motors, protection class IP 54. Speed controllable. Exception for type EZQ 45/6 B and EZS 45/6 B. Devices can be continuously controlled with an optional speed controller or they can be switched step by step with an optional 5-step transformer. Reversible. Exception for fans with shaded pole motors (... E). Reversing operation: The volume flow is reduced by approx. 35% if the air flow direction is abnormal. Thermal overload protection as standard. Electrical connection: On terminal block in the end cover of the motor. Safety instructions: The fan may only be operated if the impeller is protected against contact in accordance with DIN EN ISO 13857, e.g. with Maico protective grille SG. Article: EZQ 20/4 E, design: square wall plate, flow rate: 475 m3/h, speed: 1380 1/min, impeller type: axial, speed controllable: yes, reversibility: no, voltage type: alternating current, rated voltage: 230 V, mains frequency: 50 Hz, nominal power: 35 W, INom: 0.25 A, IMax: 0.25 A, protection class: IP 54, thermal class: B, installation location: wall / ceiling, installation type: surface-mounted, installation position: horizontal / vertical, material: sheet steel, galvanized, color: silver, weight: 3.565 kg, weight with packaging: 4.505 kg, nominal width: 200 mm, width: 345 mm, height: 345 mm, depth: 174 mm, width with packaging: 415 mm, height with packaging: 415 mm, depth with packaging: 310 mm, conveying medium temperature at nominal current: 60 °C, conveying medium temperature at IMax: -20 °C to 60 °C, closing flap: without
